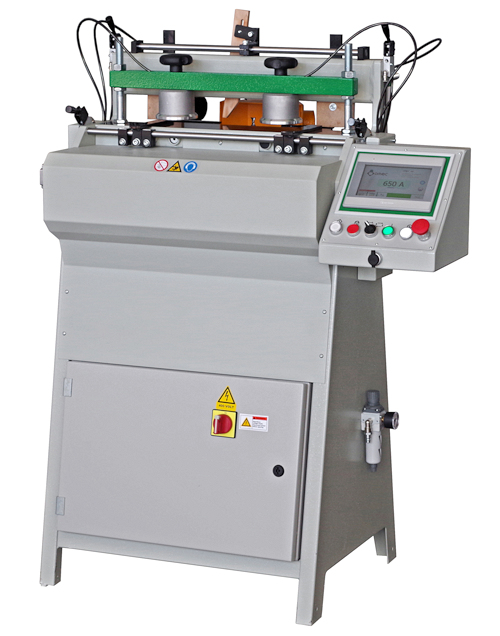

Omec 650A CNC dovetail machine with touchscreen control and dual work zones – Macoser USA

Omec 650A CNC Dovetail Machine

The Omec 650A is a two-axis automatic milling machine with CNC control designed to cut precise dovetail and parallel joints for drawers and furniture components. Compact, efficient, and easy to operate, it’s ideal for shops seeking precision and productivity in a smaller footprint.

Equipped with a high-speed spindle and mill cutter, the 650A can produce indents of different heights and depths. It cuts single male or female work-pieces, or both simultaneously, providing full flexibility for varying production needs.

The touchscreen CNC control allows operators to manage all key parameters directly: pin height, groove depth and location, machining speed, number of joints, and tool diameter compensation. The system also supports two fixed pitch options (25 mm and 50 mm) for repeatable accuracy.

The 650A features dual work zones with pneumatically controlled clamping, allowing one side to load while the other side mills. A built-in safety interlock prevents spindle movement when clamps are open, ensuring maximum operator safety.

Designed and manufactured in Italy, the Omec 650A combines traditional craftsmanship with modern automation — delivering consistent, high-quality dovetail joints with every cycle.
